Pet food is plant or animal material manufactured for consumption by dogs or other animals. In extruder, the ingredients are cooked under high temperature and pressure as it moves towards the open end of the extruder where ingredients pass through a shaping die and knife. Different shapes can be realized by adjusting the dies of extruder.
Raw Material Pet Food Processing Line adopts corn flour, bone meal, fish meal as raw materials

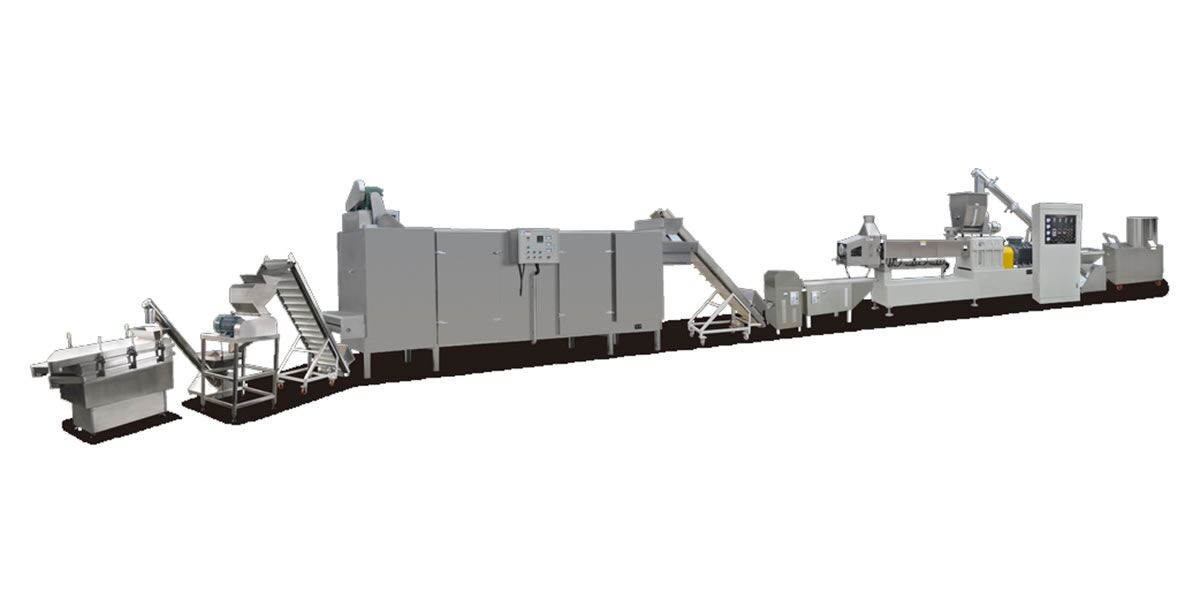

Flow chart Mixer system --- Extruding system --- Drying system ---Seasoning system --- Cooling system
Technical Parameters of Pet Food Production Line
Model
Installed Power
Power Consumption
Production capacity
Dimensions
CW65-I
35KW
30KW
60-80kg/h
10×1.2×2.2m
CW70-II
40KW
35KW
80-100kg/h
11×1.2×2.2m
CW85-II
110KW
90KW
450-500kg/h
14×1.5×3.2m
CW90-II
180KW
150KW
800-1200kg/h
I18×2.5×3.5m
