1. Twin screw instead of one screw which will be more strong powerful
2. It can be opened easily by locker which will be easily cleaned
3. The exclusive design of new technology of converoy, conveying more stable and continuous.
Pet food extruder
As a leading manufacturer of cat fish feed pellet machine processing line, we have advanced processing equipment and modern mould,
The pet food extruder can manufacturer the food with novel various shape, particular tastes and scientific nutrition for lovely pets. Our machines enjoy excellent sales by its high outputs and simple and easily be operated wihich can help you save manufacture space and manufacture cast.

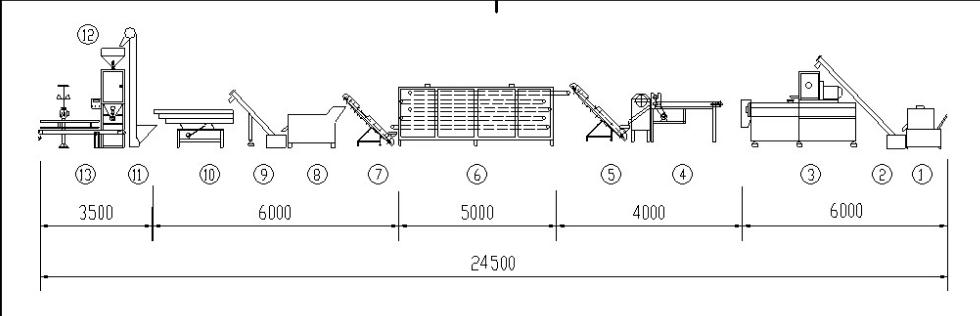

Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
Depending on different request, the line could adjust as your special request.
Voltage of Pet Food Making Machine
Three phases of animal food pellet making machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' Local voltage in different countries
Technical Parameter of Pet Food Making Machine
Model | Installed capacity | Power consumption | Output | Length |
CW65-I | 58KW | 38KW | 100~120KG/H | 16*1.2*2.2m |
CW70-II | 70KW | 45KW | 150~200KG/H | 18*1.2*2.2m |
CW85-II | 90KW | 60KW | 450~500KG/H | 20*1.5*3.2m |
CW90-II | 180KW | 150KW | 800~1200KG/H | 25*2.5*3.5m |
1. Twin screw instead of one screw which will be more strong powerful
2. It can be opened easily by locker which will be easily cleaned
3. The exclusive design of new technology of converoy, conveying more stable and continuous.
1. This machine is consisting of feeding system, extruding system, cutting system, heating system and controlling system. 2. It can process various materials, frequency speed-controlling, high automation, stable per formation, long life. 3. Longer life: uses special material and technology, endure fray.
1. New type Rail-mounted cutting system;
2. Gear Box is manufactured by our factory; 3. New Type Direct Transmit System, more power (no belt, between gear box with motor), reducing energy consumption; 4. Full automatic heating system and cooling system; 5. PLC touch screen system.
1. Screw design uses dual-head full-mesh structure, using self-clean block screw, can be any combination
2. New type Rail-mounted
cutting system;
3. Parallel shaft cylindrical helical Gear Box, it is manufactured by our factory; 4. New Type Direct Transmit
System, more power (no belt, between gear box with motor), reducing energy consumption;
5. Full automatic heating system and
cooling system;
6. PLC touch screen control system.
1. The oven is a five layers,10 meters circulated continuous dryer. (Can be customized for you)
2. It mainly consist of drive motor,stainless steel drive belt, circulating fan, dehumidification equipment, aircraft, PLC control system, etc.
3. The Moisture of the dried material is around 9-10%.
Fried Instant Noodles Making Machine Production Line
Automatic instant noodle processing line, with perfect technology, compact structure, original design and stable performance, is developed on the base of similar porducts and requirements in the world market.
It reallizes high automation, convenient operation, low energy and small floor space that assures all working procedures from feeding flour to finished products can be accomplished once. The investment of this line is only one tenth of large size equipment, especially suitable to small-size or self-owned enterprises.
The corrugated instant noodle produced by this line is tenaciou, smooth and transparent. It is very easy to be saturated by water.
Voltage of fried instant noodle making machine
Three phases of instant noodle making machine production line: 380 V/50 Hz, Single phase: 220 V/50 Hz in china, we can make it according to customers' local voltage in different countries.
Technical Parameter of fried instant noodle making machine:
Model | Installed Powder | Steam pressure | Acting width | Throughput | Dimension |
XBF-III Electrical | 88kw | 1.5kg/cm2 | 210mm | 11000pcs/8h | 20*0.8*1.6m |
XBF-III Steam | 8kw | 6kg/cm2 | 210mm | 11000pcs/8h | 20*0.9*1.6m |
XBF-IV Steam | 8kw | 6kg/cm2 | 310mm | 30000pcs/8h | 45*1.2*1.8m |
3D papad pani puri fryums making machine
3D papad pani puri fryums making machine
Frying Pellet Pani Puri Making machine Processing Line adopts flour, corn starch and potato starch as raw material, makes food through the process of extruding, cooking, shaping, drying and frying.
Flow chart of pani puri making machine and their products:
Mixer-- Screw Covenyor-- Pre Cooker -- Single Screw Extruder -- Vibrating Cooler -- Air Blower -- Hot Air Dryer -- Air Blower -- Hot Air Circulation Drying Machine.
Depending on different request, the line could adjust as your special request.
Voltage of 2D/3D pani puri making machine
Three phases of 2D/3D pani puri making machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' local voltage in different countries
Technical Parameter of 2D/3D pani puri making machine
Model | Installed Power | Power Cusumption | Throughput | Dimension |
SX2000-100 Single Screw Processing Line | 96KW | 80KW | 80~100KG/H | 25*1.5*2.3m |
Corn Cheese Ball Puff Snack Food Processing Machine from Luerya
Snack food manufacturing machine uses advanced extruding technology,adpots corn,rice,wehat,oat etc as raw material to produce various market popular puffed snacks by changing moulds of extruder and production technics. It has an agility scheme,strong adaptability, has gained good prasie and agreement from public.
Mixer --- Hoister --- twin screw extruder --- Hoister --- Dryer --- Small hoister --- seasoning machine
Depending on different request, the line could adjust as your special request.
Voltage of corn puff snack extruder
Three phases of snack manufacturing machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' local voltage in different countries
Technical Parameter of corn puff snack extruder
Name | Processing Line(corn puff snack extruder) | Throughput | Power | dimension |
Snack Food | Mixer--Twin screw Extruder--Air Conveyer--Roasting Oven--Flavoring machine | 100~150kg/h | 68KW | 15*0.8*1.6m |
Jam Center Food | Mixer--Twin screw Extruder--Multi-function Cutting Shaper--Core Filler--Large-hoister--Roasting Oven--Flavoring machine | 150~200kg/h | 70KW | 18*0.8*1.6m |
Rice Crust Food | Mixer--Twin screw Extruder--Multi-function Cutting Shaper--Automatic Fryer--Eight-square Seasoner | 120~180kg/h | 80KW | 12*0.8*1.6m |
Narshall Food | Mixer--Twin screw Extruder--Multi-function Cutting Shaper--Core Filler--Large-hoister--Material Machine--Oil Sprayer--Suger Sprayer--Material Machine--Dryer--Cooler | 120~150kg/h | 75KW | 30*0.8*2.0m |
