2021 New Arrival Pet Food Production Line
You are here: Home » Products » Series of pet food production line » 2021 New Arrival Pet Food Production Line

2021 New Arrival Pet Food Production Line

Share to:

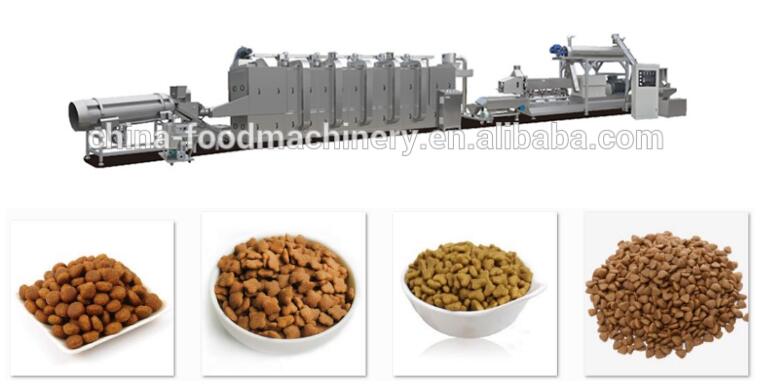

1. Pet dog food production line uses meat meal, fish meal, corn powder, soya meal and other grains’ powder as main materials to make the pet food, like dog, cat, fish, bird food etc. with different shapes and taste by changing the dies, formulations. The pet foods are made under high temperature condition, and popular to thepet food market.

2. Materials: Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste etc.Or using the corn feeds, rice feeds, wheat feeds directly, then grinding. Other nutrient can be added together.

3. Flow chart:Mixing system---Extrusion system----Drying system----Flavoring system--Packing system

4. Capacity: 120-150/200-300/500/1000/2000kg/h
  • 65 70 85 100 110
  • LUERYA
Material:
Quantity:

Pet food extruder machine with price

 Pet food extruder

As a leading manufacturer of cat fish feed pellet machine processing line, we have advanced processing equipment and modern mould,


The pet food extruder can man
ufacturer the food with novel various shape, particular tastes and scientific nutrition for lovely pets. Our machines enjoy excellent sales by its high outputs and simple and easily be operated wihich can help you save manufacture space and manufacture cast.

Flow chart of pet food extruder production line

Mixing system---Extrusion system----Drying system----Flavoring system--Packing system


Depending on different request, the line could adjust as your special request.

Product Paramenters

Voltage of Pet Food Making Machine

Three phases of animal food pellet making machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' Local voltage in different countries

Technical Parameter of Pet Food Making Machine

Model
Installed capacity
Power consumption
Output
Length
CW65-I
58KW
38KW
100~120KG/H
16*1.2*2.2m
CW70-II
70KW
45KW
150~200KG/H
18*1.2*2.2m
CW85-II
90KW
60KW
450~500KG/H
20*1.5*3.2m
CW90-II
180KW
150KW
800~1200KG/H
25*2.5*3.5m

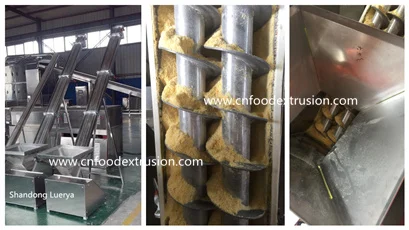

1. Twin screw conveyor

1. Twin screw instead of one screw which will be more strong powerful
2. It can be opened easily by locker which will be easily cleaned

3. The exclusive design of new technology of converoy, conveying more stable and continuous.

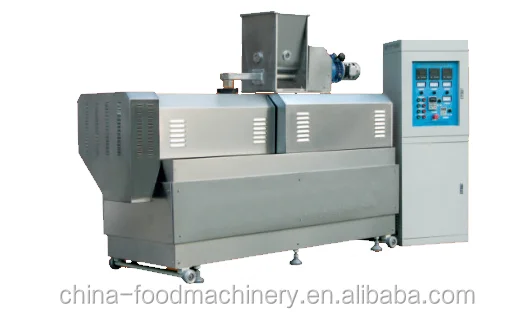

2.1 SX65-II Twin screw extruder

1. This machine is consisting of feeding system, extruding system, cutting system, heating system and controlling system. 2. It can process various materials, frequency speed-controlling, high automation, stable per formation, long life. 3. Longer life: uses special material and technology, endure fray.

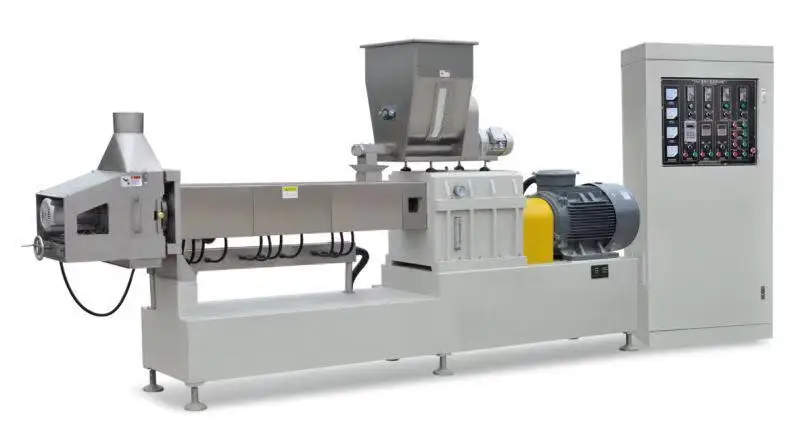

2.2 New SX70 Twin screw extruder

1. New type Rail-mounted cutting system;

2. Gear Box is manufactured by our factory; 3. New Type Direct Transmit System, more power (no belt, between gear box with motor), reducing energy consumption; 4. Full automatic heating system and cooling system; 5. PLC touch screen system.

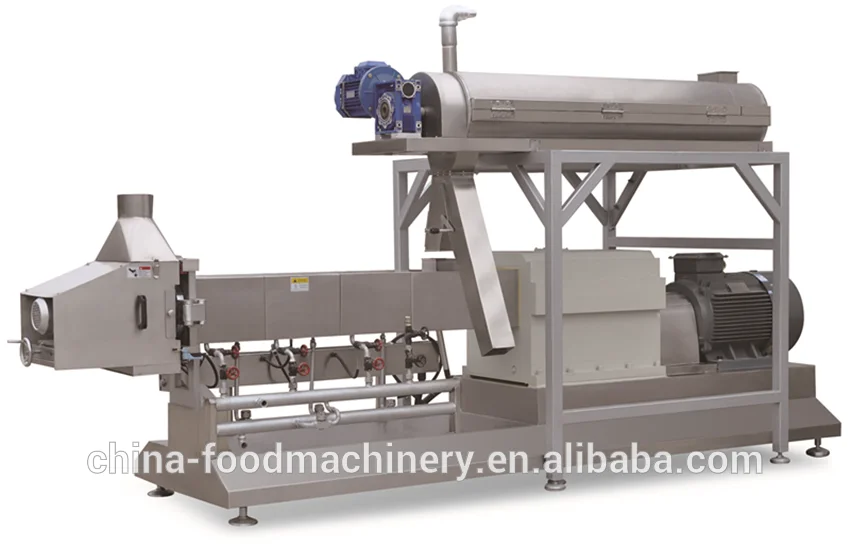

2.3 SX85 SX100 SX110 Twin Screw Extruder With Pre-conditioner

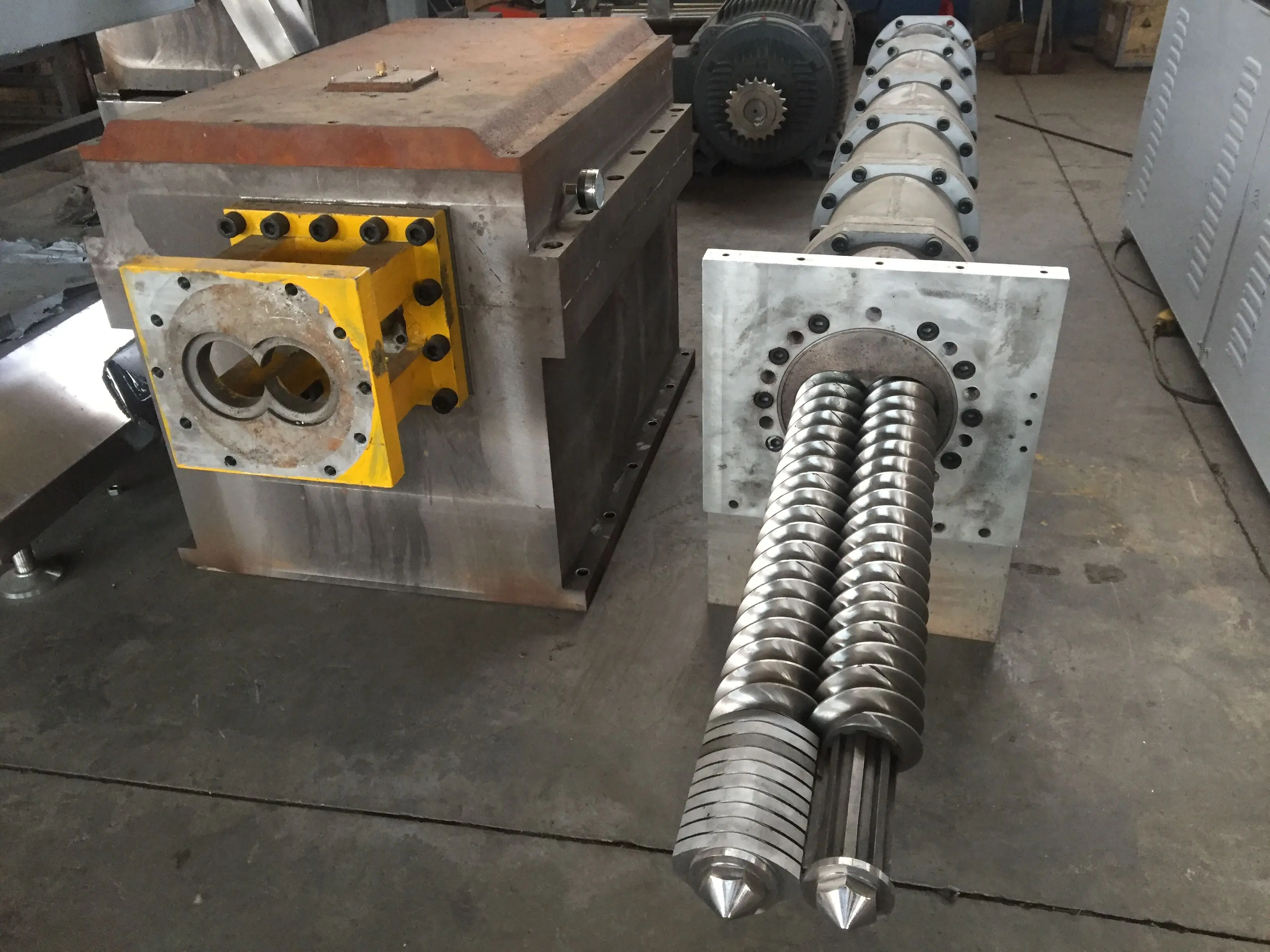

1. Screw design uses dual-head full-mesh structure, using self-clean block screw, can be any combination

2. New type Rail-mounted
cutting system;

3. Parallel shaft cylindrical helical Gear Box, it is manufactured by our factory; 4. New Type Direct Transmit
System, more power (no belt, between gear box with motor), reducing energy consumption;

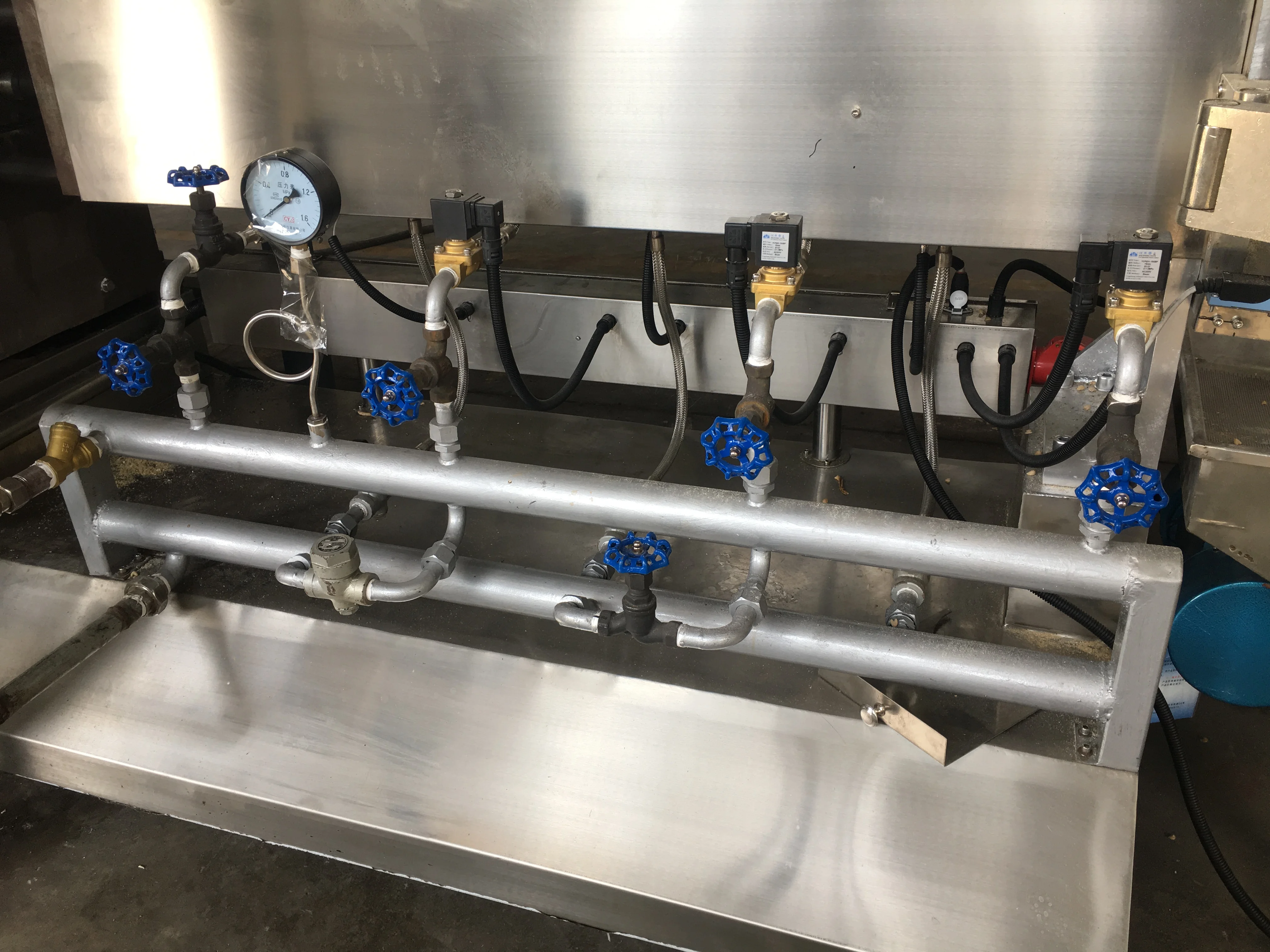

5. Full automatic heating system and
cooling system;

6. PLC touch screen control system.

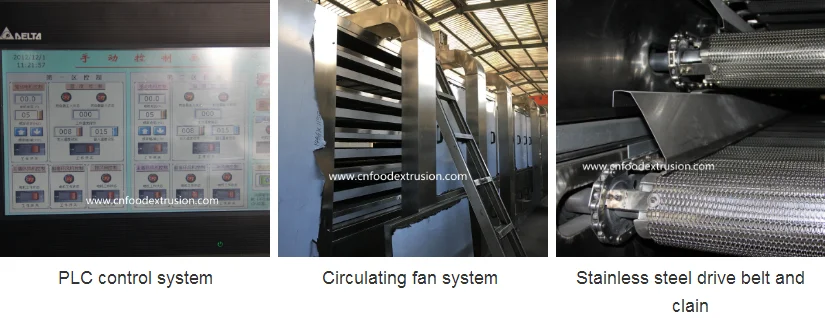

3. Main Machine (New design) - Dryer

1. The oven is a five layers,10 meters circulated continuous dryer. (Can be customized for you)
2. It mainly consist of drive motor,stainless steel drive belt, circulating fan, dehumidification equipment, aircraft, PLC control system, etc.
3. The Moisture of the dried material is around 9-10%.

Company Profile
Our Advantages
Certifications



LUERYA has brought together a group of experienced experts engaged in R&D; of extrusion equipment.
