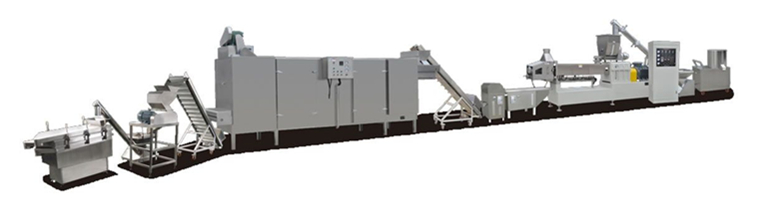

China Jinan leading technology pet food extruder machine
Share to:
Production capacity : from 100kg/h to 2000kg/h Material of pet food : wheat flour like wheat,corn,rice and so on Main machines : Mixer,Extruder,dryer Material of machines : Food grade stainless steel Function of production line : full automatic,easy operation
China Jinan leading technology pet food extruder machine
Pet food machine
The pet dog cat food machine can manufacturer the food with novel various shape, particular tastes and scientific nutrition for lovely pets. Our machines enjoy excellent sales by its high outputs and simple and easily be operated wihich can help you save manufacture space and manufacture cast.
1. Pet food is plant or animal material intended for consumption by dogs, cat or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife. 2. Pet Food Processing Line adopts corn flour, bone meal, fish meal as raw materials 3. Different shapes can be made by adjusting the dies from extruder
Flow chart of extruder for pet food machine:
Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
Depending on different request, the line could adjust as your special request.
Technical Parameter
Voltage of pet food machine
Three phases of pet food machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' Local voltage in different countries
Technical Parameter of pet food machine
Model
Installed capacity
Power consumption
Output
Length
CW65-I
58KW
38KW
100~120KG/H
16*1.2*2.2m
CW70-II
70KW
45KW
150~200KG/H
18*1.2*2.2m
CW85-II
90KW
60KW
450~500KG/H
20*1.5*3.2m
CW90-II
180KW
150KW
800~1200KG/H
25*2.5*3.5m
1. Twin screw conveyor
1) Twin screw instead of one screw which will be more strong powerful 2) Can be opened easily by locker which will be easily cleaned
3) The exclusive design of new technology of converoy, conveying more stable and continuous

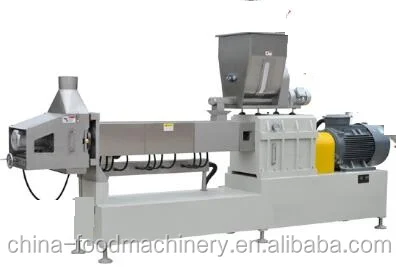

2. Twin Screw Extruder
This machine is consisting of feeding system, extruding system, cutting system, heating system and controlling system.
It can process various materials, frequency speed-controlling, high automation, stable per formation, long life.
Model: SX-65; Capacity: 120~150kg/hour
3. Main Machine (New design) - Dryer
1. The oven is a five layers,10 meters circulated continuous dryer. 2. It mainly consist of drive motor,stainless steel drive belt, circulating fan, dehumidification equipment, aircraft, PLC control system, etc. 3. The Moisture of the dried material is around 9-10%.
