small size automatic instant noodle making machine
You are here: Home » Products » Series of Instant Noodles Prodution Line » small size automatic instant noodle making machine

small size automatic instant noodle making machine

Share to:

Quantity:

small size automatic instant noodle making machine

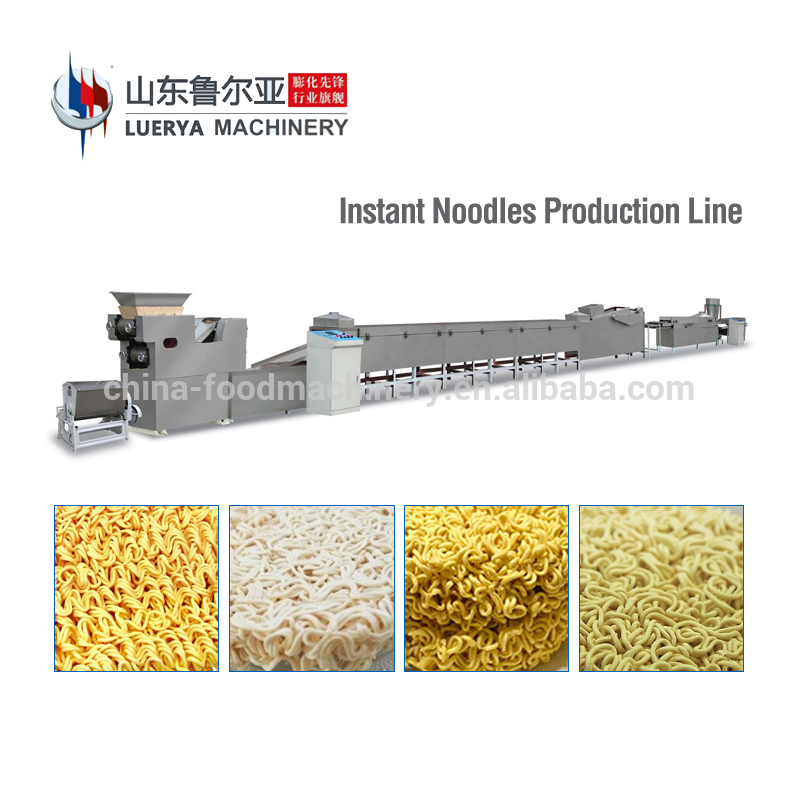

Automatic instant noodle processing line, with perfect technology, compact structure, original design and stable performance, is developed on the base of similar porducts and requirements in the world market.


It reallizes high automation, convenient operation, low energy and small floor space that assures all working procedures from feeding flour to finished products can be accomplished once. The investment of this line is only one tenth of large size equipment, especially suitable to small-size or self-owned enterprises.

The corrugated instant noodle produced by this line is tenaciou, smooth and transparent. It is very easy to be saturated by water.

Flow chart of instant noodle making machine and their products:

Dough maker -- Shape Former -- Boiling Machine -- Cutting Machine -- Electric Fryer/Steam Fryer -- Cooler

Depending on different request, the line could adjust as your special request.





Technical Parameter

Voltage of instant noodle making machine
Three phases of instant noodle making machine: 380 V/50 Hz, Single phase: 220 V/50 Hz in china, we can make it according to customers' Local voltage in different countries.

Technical Parameter of Automatic instant noodle making machine:


Model
Installed Powder
Steam pressure
Acting width
Throughput
Dimension
XBF-III Electrical
88kw
1.5kg/cm2
210mm
11000pcs/8h
20*0.8*1.6m
XBF-III Steam
8kw
6kg/cm2
210mm
11000pcs/8h
20*0.9*1.6m
XBF-IV Steam
8kw
6kg/cm2
310mm
30000pcs/8h
45*1.2*1.8m



1. Mixer/Dough maker

The main function of Flour Mixer is to mix flour, salt, alkali, water and other additives evenly, this is the first step of instant noodle producing.
Technical parameter:
Power: 3 KW
Capacity: 50 kg/time
Dimension:1100×650×800 mm

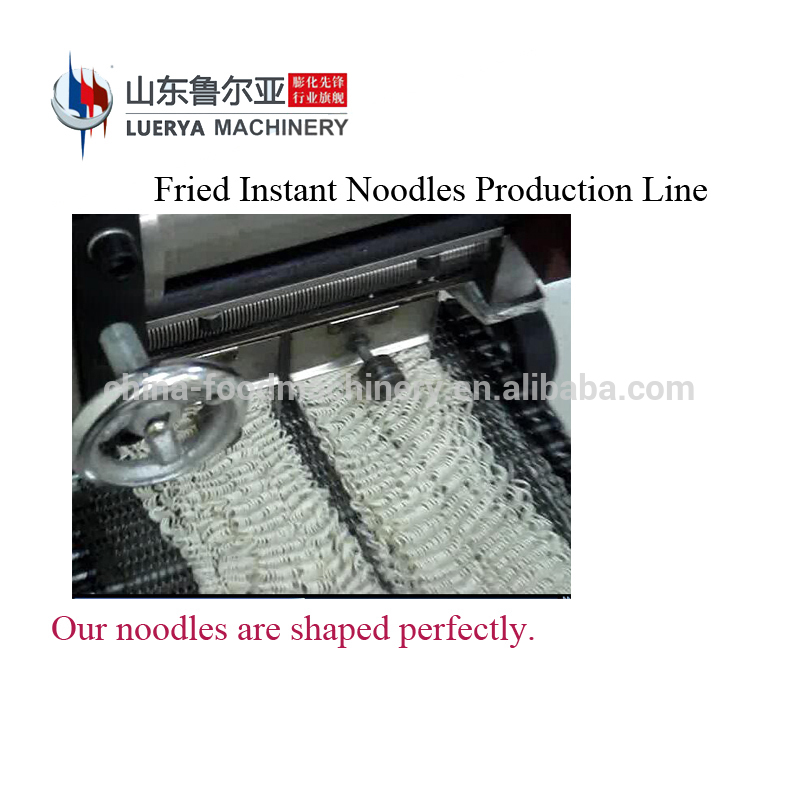

2. Double pressing shaper

  1.  This equipment consists of five pairs of down rollers and wave formers.

  2.  Function: press the mixed raw material to belt shape, and roller pressing the belt make it thinner, at last a cutting knife will cut it to strips and the wave former will make wave shape on each strip.

  3.   The speed of this equipment is adjusted by a transducer which is easy to control and operate.

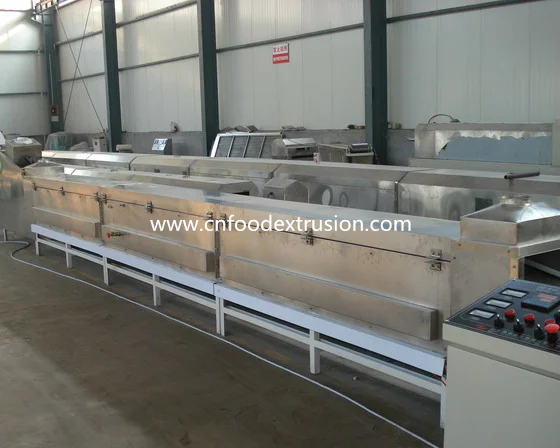

3. Boiling Machine

1. This equipment consists of body frame, boiling cases, conveying belt and steam pipelines.
2. Wave shaped noodle strips will be cooked by the steam when it goes through the case and it will have the strength and transparency characteristic after boiling.
3. The speed is adjustable which can be compatible with the Pressing shaper

4. Fryer machine

  1. This equipment consists of stainless frame, oil container, heat exchanger, driving part, fried shaping case and shape part.

  2. The main function of this equipment is to fry the boiled noodle and dehydrate it, after the frying, the noodle pieces will become square shape or round shape, each piece will be identical. \

    Our Advantage

1. Superior quality with reasonable prices:

Shandong luerya is ISO certified, quality assured, and priced reasonably. Machine specifications are customized to fit international markets and customer demands. All of machine parts, electronic components, and safety devices follow CE regulation.


2. Fully equipped test workplace:

In our test workplace, a wide range of flours, food additives, seasonings, fillings, are ready for on-site client testing to ensure the machine fits each client's final product requirements.


3. Successfully exported worldwide:

Since 1990, Luerya has successfully exported its machines to 90 countries. With many practical experiences, Luerya can provide clients with the most effective market information and customer service experience.

4. Our professional team:
Our specialized R&D teams are constantly developing new machines, effectively fabricating tailor-made machines, and working to improve machine quality. We can provide basic formula for produce the food etc.And help customer to produce new products according to customer's formula.


5. Complete parts safety stock for all machine series:

Except for special parts, we can deliver the components each client needs right away.

Our Service

Commissioning & After - sales service of instant noodle making machine

1. We make accurate factory layout design according to customer's factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storage, worker's restroom, etc.

2. 1-2 engineers will go to your factory to install and adjust the machinery to realize normal producing at shortest time.


3. Our engineers can train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the machinery.

4. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

LUERYA has brought together a group of experienced experts engaged in R&D; of extrusion equipment.
